Cylindrical ball spline LT-X standard type, LT-XL extended type Cylindrical self-lubricating maintenance-free ball spline MT-X standard type, MT-XL extended type The nut is more compact than that of the current Model LT thanks to the new circulating pathways. The outer diameter of the nut is the same as that of the linear bushing. The Model LT-XL is suitable for moment loads, torque, and overhung loads that exceed those tolerated by the Model LT-X.

product_banner
Products
compact ball spline bearing

Compact Ball Spline LT-X LT-XL MT-XL MT-X MT-XL LK-XL LK-XL MK-X MK-X MK-XL

Description

Small size and high rigidity

High precision and accurate positioning

Smooth movement with low friction

interchangeability

Inqurie Now

Product Details

Types and Features

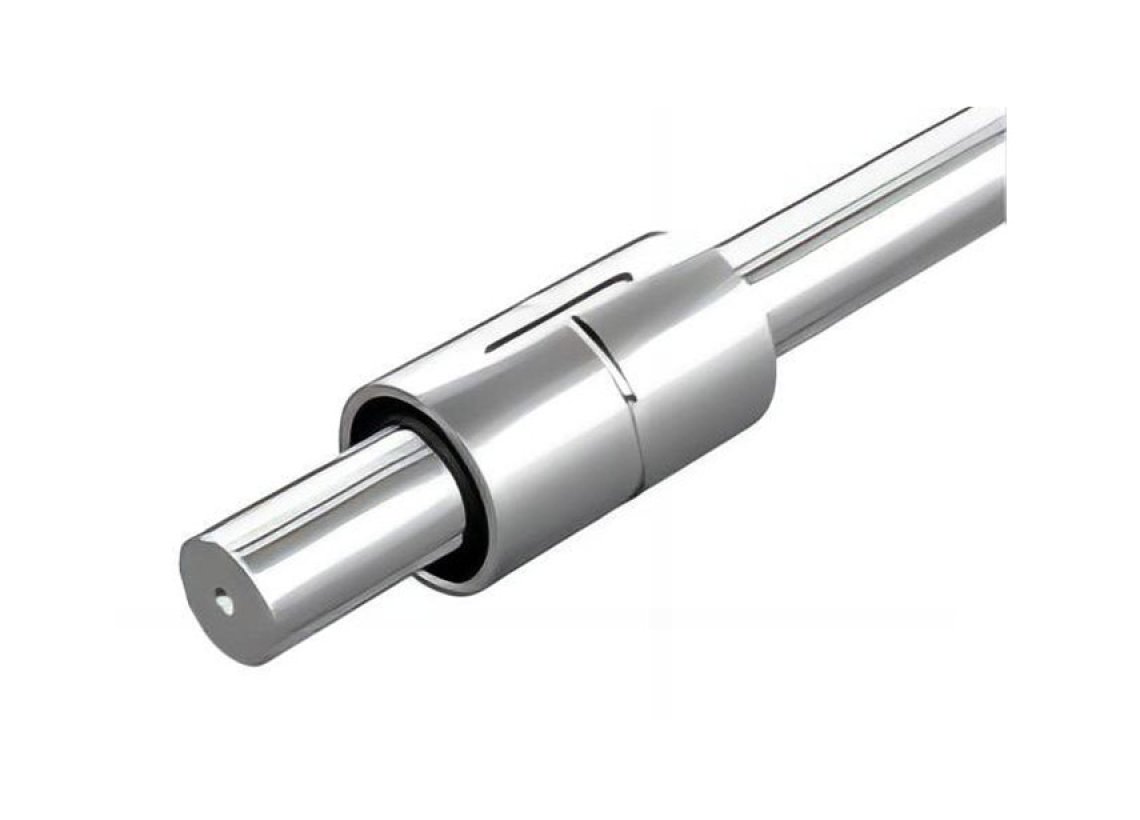

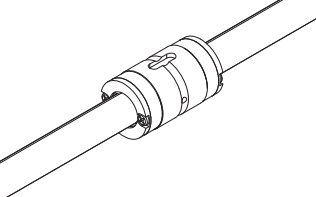

Cylindrical ball spline LT-X standard type, LT-XL extended type
Cylindrical self-lubricating maintenance-free ball spline MT-X standard type, MT-XL extended type

The nut is more compact than that of the current Model LT thanks to the new circulating  pathways.  The outer diameter of the nut is the same as  that of the linear bushing.  The Model LT-XL is suitable for moment loads,  torque, and overhung loads that exceed those  tolerated by the Model LT-X.

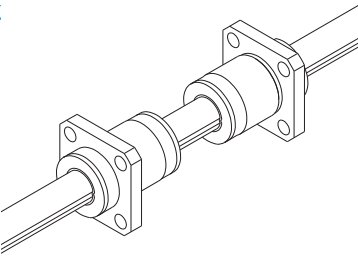

Square flange ball spline LK-X standard type, LK-XL extended type
Square flange self-lubricating maintenance-free ball spline MK-X standard type, MK-XL extended type

The flange is similar to the Model LF, but  flattened in four places. Compared to models  with round flanges, its core height is lower, and  it allows for more compact designs.  The Model LK-XL is suitable for moment loads  or torque and overhang loads that exceed those  tolerated by the Model LK-X.
