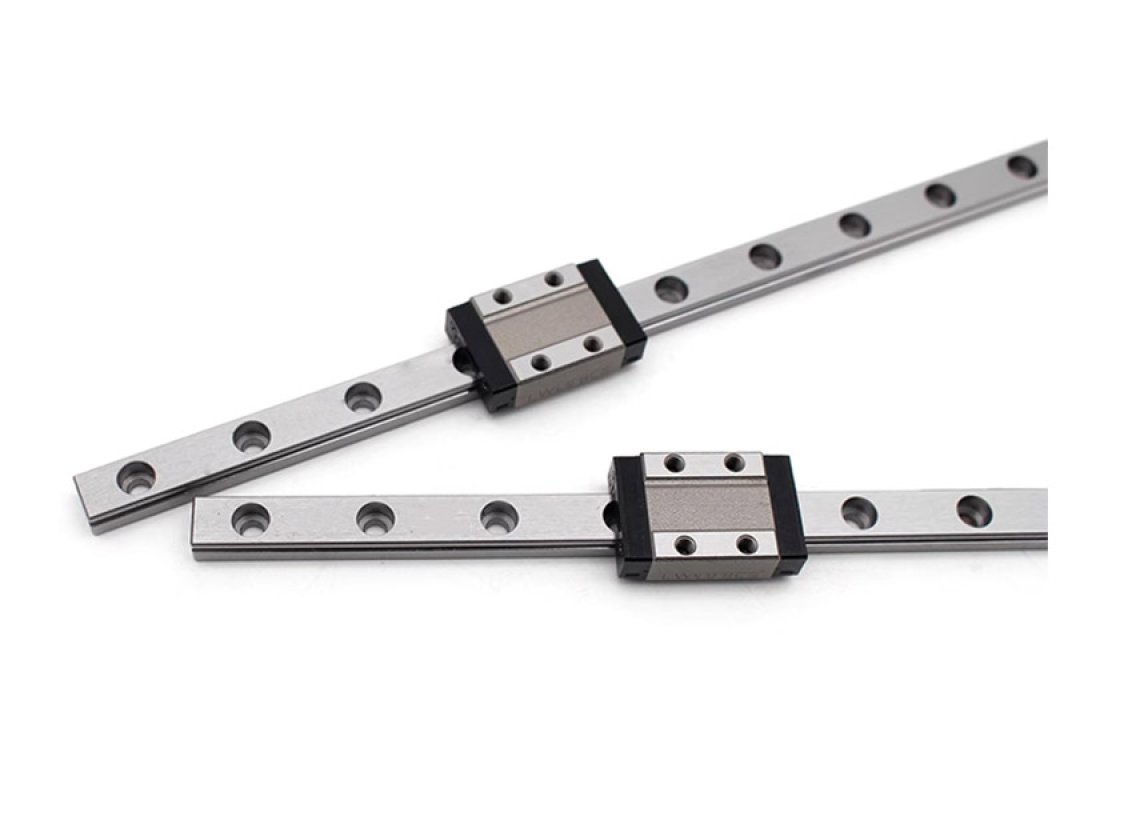

LMC Series - Micro Ball Guide Rail

Description

Low Dust Generation

Compact

Lightweight

Inqurie Now

Product Details

Caged Ball LM Guide model LMC has a structure where two raceways are incorporated into the  compact body, enabling the model to receive loads in all directions, and to be used in locations  where a moment is applied with a single rail. In addition, use of ball cages eliminates friction between balls, thus achieving high speed, low noise, acceptable running sound, long service life, and  long-term maintenance-free operation.



 Low Dust Generation

Use of ball cages eliminates friction between balls and retains lubricant, thus achieving low dust  gen-eration. In addition,Model SRS-N the LM block and LM rail use stainless steel, which is highly resistant to corrosion.


 Compact

Since LMC has a compact structure where the LM rail cross section is designed to be low and that  contains only two rows of balls, it can be installed in space-saving locations.

Lightweight

 Since part of the LM block is made of resin and formed through insert molding, LMC is a lightweight, low inertia type of LM Guide.


Model LMC-M

A standard type of LMC.

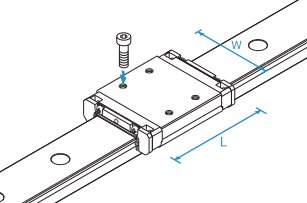

Model LMC-WM

Has a longer overall LM block length (L), a greater width and a larger rated load and permissible  moment than LMC-M.

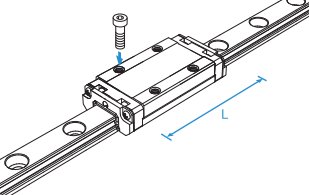

Model LMC-N

Compared with model LMC-M, it has a longer total LM block length (L) and a higher load rating and permissible moment.





Model LMC-WN

Compared with Model LMC-WM, it has a longer  total LM block length (L) and a higher load rating and permissible moment.
