The spline nut can be attached to the housing via the flange, making assembly simple. It is optimal for locations where the housing may be deformed if a keyway is machined on its surface, and where the housing width is small.

product_banner
Products
medium torque ball spline

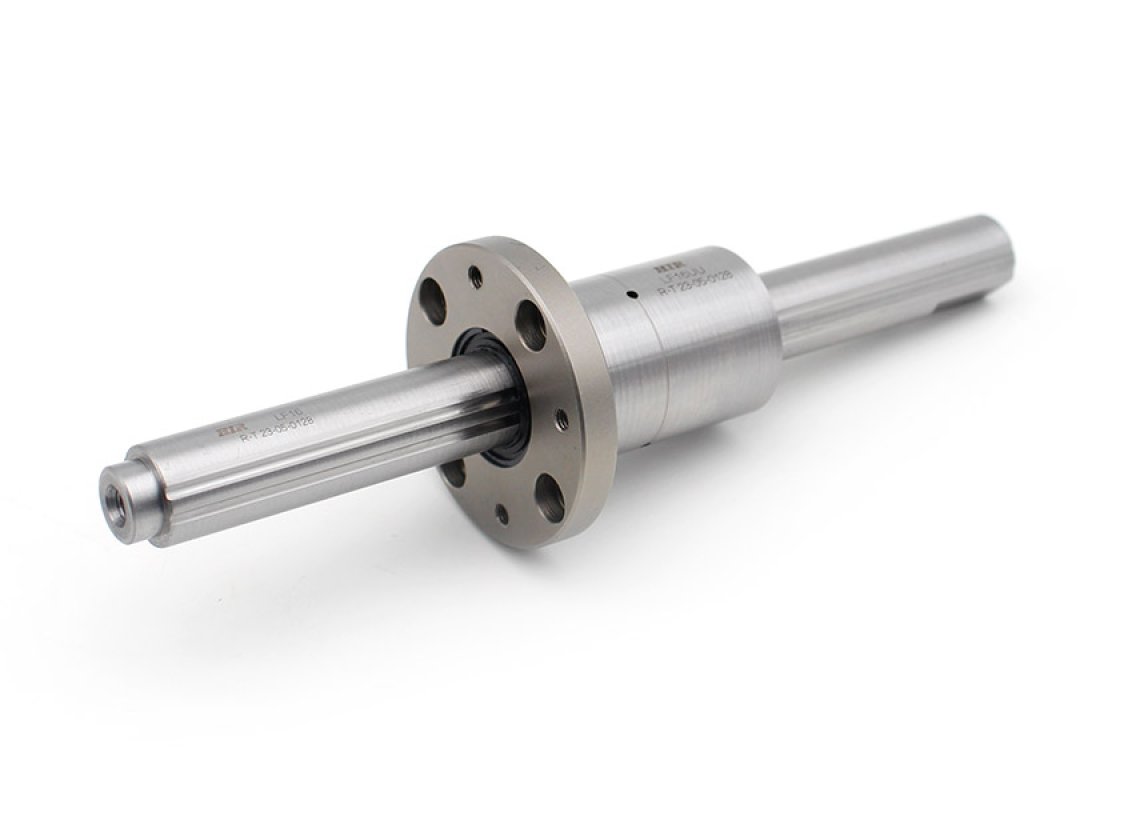

Medium Torque, Medium Low Torque Ball Spline LT LF LH LT-S LF-S

Description

Large Load Capacity

No Angular Backlash

High Rigidity

Ball Retaining Type

Inqurie Now

Product Details

Types and Features

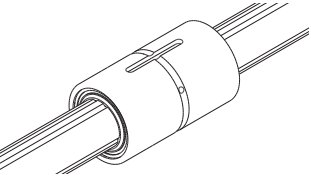

Cylindrical Type Ball Spline Model LT

The most compact type with a straight cylindrical spline nut. When transmitting a torque, a  key is driven into the body.

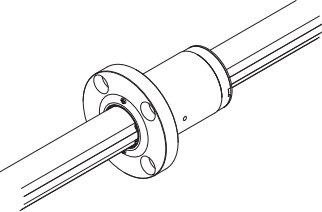

Flanged Type Ball Spline Model LF

The spline nut can be attached to the housing  via the fl ange, making assembly simple.  It is optimal for locations where the housing  may be deformed if a keyway is machined on its  surface, and where the housing width is small.

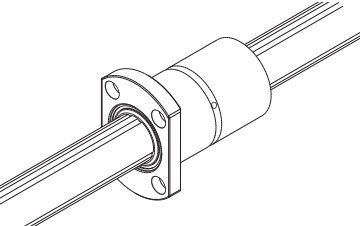

The double-cut edge H-type ball spline of Flange, Model LH
The Type LH retains the mounting holes of the circular flange, cutting off the two sides of the circular flange. The flange is fixed on the bearing seat through bolts, making assembly simple. It saves more space compared to the Type LF.

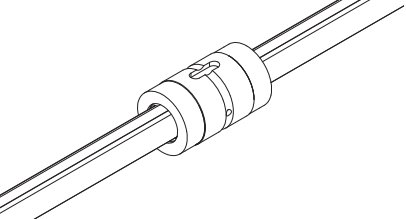

Cylindrical ball spline Model LT-S
The nut is cylindrical, the key is inserted after torque transmission. It is the most compact type.

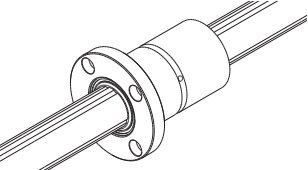

Circular flange ball spline LF-S type
This type uses a flange to fix to the support seat by bolts, making the assembly simple. It achieves the effect of saving space.
