LMR Series - Roller Guide Rail

product_banner
Products
linear roller guide rail block

LMR Series - Roller Guide Rail

Description

Ultra-high Rigidity  /  4-way Equal Load

Smooth Motion through Skewing Prevention

Inqurie Now

Product Details

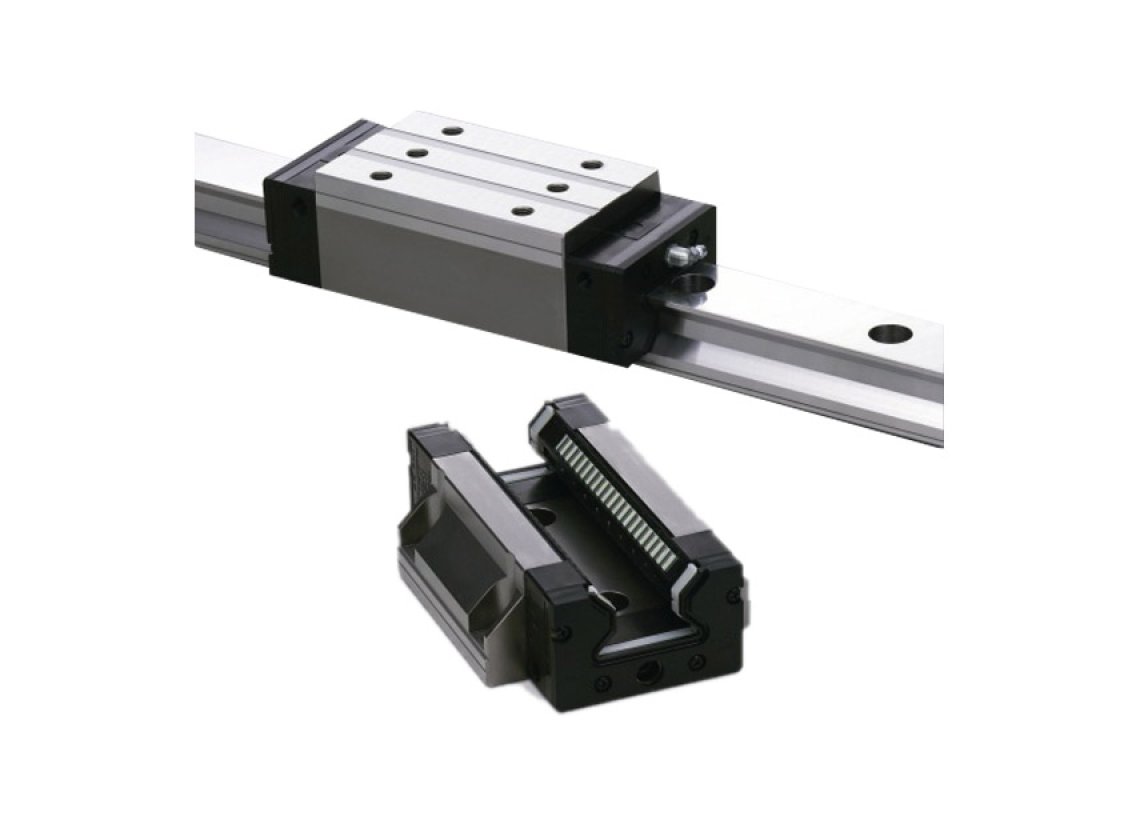

LMR is an ultra-high rigidity Roller Guide that uses roller cages to allow low-friction, smooth motion  and achieve long-term maintenance-free operation.

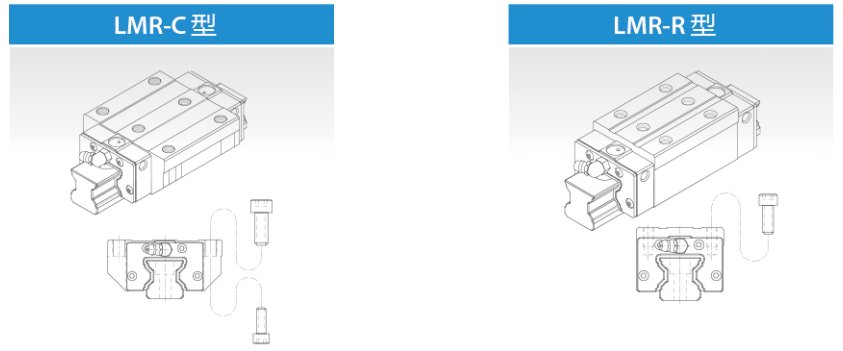

Model LMR-C

The flange of the LM block has tapped holes.   Can be mounted from the top or the bottom.  Used in places where the table cannot have  through holes for mounting bolts.

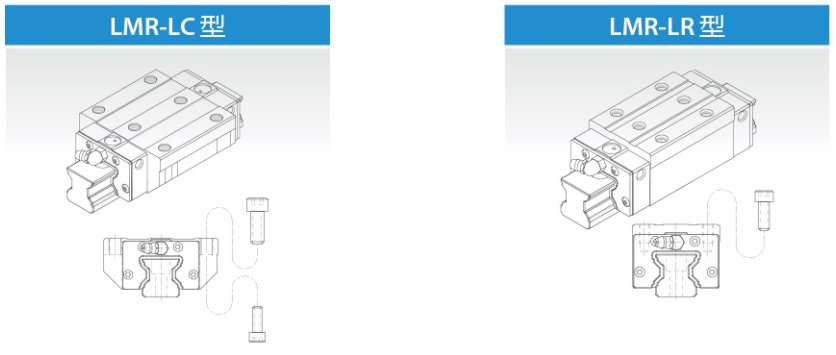

Model LMR-LC

The LM block has the same cross-sectional shape  as model LMR-C, but has a longer overall LM  block length (L) and a greater rated load.


Models LMR-R

With this type, the LM block has a smaller width  (W) and tapped holes.  Used in places where the space for table width is  limited.


Models LMR-LR

The LM block has the same cross-sectional shape  as the Model LMR-R, but has a longer overall  LM block length (L) and a greater rated load.


  • Ultra-high Rigidity

A higher rigidity is achieved by using highly rigid rollers as the rolling elements and having the overall roller length more than 1.5 times greater than the roller diameter.


  • 4-way Equal Load

Since each row of rollers is arranged at a contact angle of 45°, so that the LM block receives an equal  load rating in all four directions (radial, reverse radial and lateral directions), high rigidity is ensured  in all directions.


  • Smooth Motion through Skewing Prevention

The roller cage allows rollers to form an evenly spaced line while circulating, thus preventing the rollers from skewing as the block enters an loaded area. As a result, fl uctuation of the rolling resistance  is minimized, and stable, smooth motion is achieved.


  • Long-term Maintenance-free Operation

Use of roller cages eliminates friction between rollers and increases grease retention, enabling longterm maintenance-free operation to be achieved.
